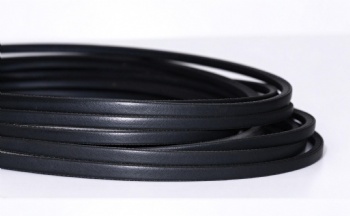

Narrow Section Wrapped V Belts
EMAIL 在线咨询

Product Name	Narrow Section Wrapped V Belts	Type	Wrapped V-Belts
Material	Rubber	Place of Origin	Anhui，China（Mainland）
Brand Name	Sparker	Color	Black
Application	Automobile	Advantage	Compress

Narrow section wrapped V Belts offer high elastic strength,low protraction,small matching tolerance,smooth transmission,high transmission efficiency,running compact and reduce the number of use. Especially the narrow section wrapped V belts are available for transmission devices of motive force in harsh conditions,such as high power,impact,instantaneous overload,compact and high working speed transmission.Also suitable for transmission of general motive force.

Narrow Section Wrapped V-Belts
Production Type	Top Width	Pitch Width	Height	Angle	Length Conversion	Length Range(inch)	Length Range(mm)	Factory Mark
3V(9N)	9.5	/	8	40°	La=Li+50	16”-200”	1000-2800	La
5V(15N)	16	/	13.5	40°	La=Li+82	44”-394”	1000-10008	La
8V(25N)	25.5	/	23	40°	La=Li+144	75”-600”	3000-15240	La
SPZ	10	8	8	40°	La=Li+50	16”-200”	1000-2800	La
SPA	13	11	10	40°	La=Li+63	23”-200”	1245-8000	La
SPB	17	14	14	40°	La=Li+88	44”-394”	1000-10008	La
SPC	22	19	18	40°	La=Li+113	71”-600”	1900-15240	La

Application：The narrow section wrapped V belts are suitable for high speed and high power mechanical drive，also applicable to the general power transmission。Apply to work in - 18 ℃ to 60 ℃ environment。

Characteristic ：Lateral stiffness, transmission power is higher than ordinary wrapped V-belt between 50% and 100%transmission speed limit of 40 m/s,transmission efficiency more than 95%.
